Parabolic Umbrellas

Getting the most from your parabolic umbrella

It has been a few years now since Paul Buff (Alien Bees) introduced their 86-inch PLM (Parabolic Light Modifier) umbrella, which was quickly followed up by similar umbrellas from other companies. Some call them a 7-foot umbrella (measured across the arc of the back of the umbrella), some call then 65-inch umbrellas (measured across the opening of the umbrella). They come in a variety of styles—white reflective, dull silver, shiny silver, and translucent (shoot through). They have 16 ribs/panels (most photo umbrellas have 8, while the Photek GoodLighter and Softlighter have 10). The more ribs, the closer the shape comes to being round.

But it is not just about the shape (mostly noticed in the catchlights of people). Before all of these inexpensive parabolic umbrellas there were others at much greater price from companies like Broncolor and Briese. I believe it was all started by Briese, but their market is mostly in the film industry. More photographers around the world are familiar with the Broncolor Para modifiers that come in a variety sizes from their Para 88 (about 3-feet across the front) to the Para 330 (almost 11-feet across the front opening). Prices range from $3,000 to $7,000 or more just for the umbrella system.

These original parabolic reflectors provide a wide range of looks by having a mechanism to move the lamp head within the umbrella to focus or defocus the light. With the lamp placed deep into the umbrella you can find the focus spot that turns it into a gigantic spotlight that collimates the light rays emerging from it. But many people feel that the real beauty from the para comes when it is defocused. To do that bring the lamp head all the way out to the edge of the umbrella. With its 24 shiny silver panels the center of the umbrella goes dark and you wind up with 24 small bright spotlights around the edge, making it into a gigantic ring light.

It is this soft, yet hard, ring light quality that I have found to be lacking in the 7-foot class parabolic umbrellas. For most of the time that I have owned these big umbrellas I have basically used them as umbrellas for fill light or with a heavy diffusion fabric across the front turning them into big round softboxes. That is fine for the white reflective and the translucent umbrellas. But that silver umbrella. There had to be more to it.

For the photos in this article I will be using the shiny silver version of the Interfit Photographic 65-inch Parabolic Umbrella with their Honey Badger studio flash. You can slide your lamp all the way in on the shaft of these umbrellas to create a strong spotlight like effect. But drawing the head out to the end of the shaft doesn’t get to the ring light look. Take a look at the first two photos of the silver umbrella with the head all the way in making for a concentrated light and then with the head pulled out to the very end of the shaft. The center is still the hot spot in the umbrella. Where are those spotlights around the edge of the umbrella?

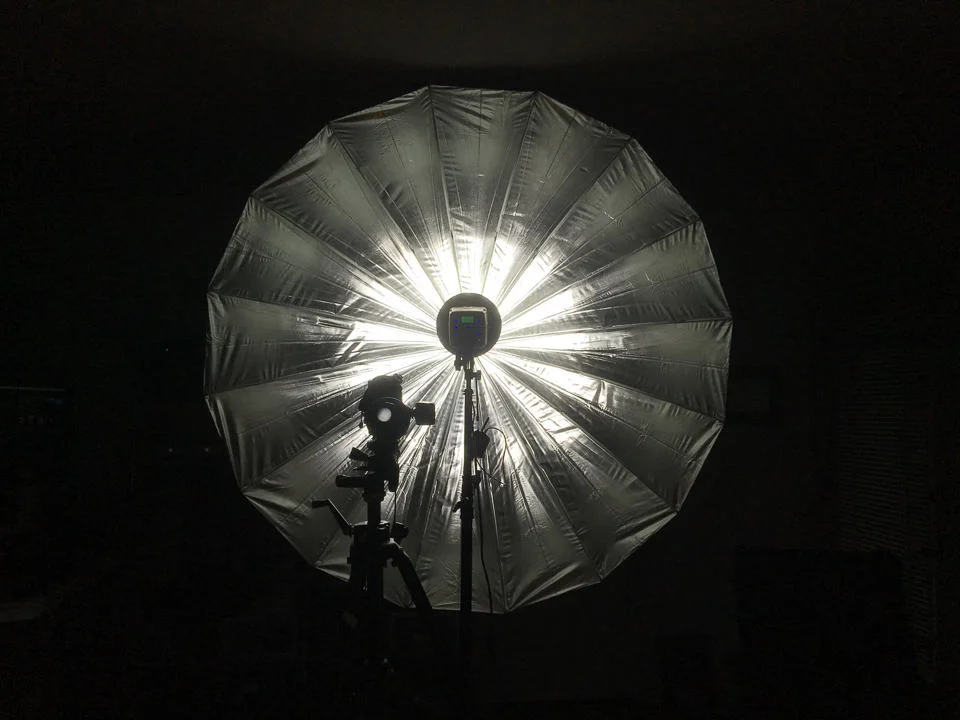

Flash head mounted far down the shaft of the umbrella

Flash head mounted far down the shaft of the umbrella

Flash head mounted as far out on the umbrella shaft as possible

Flash head mounted as far out on the umbrella shaft as possible

Flash head mounted on a separate stand 5-feet out from the umbrella

Flash head mounted on a separate stand 5-feet out from the umbrella

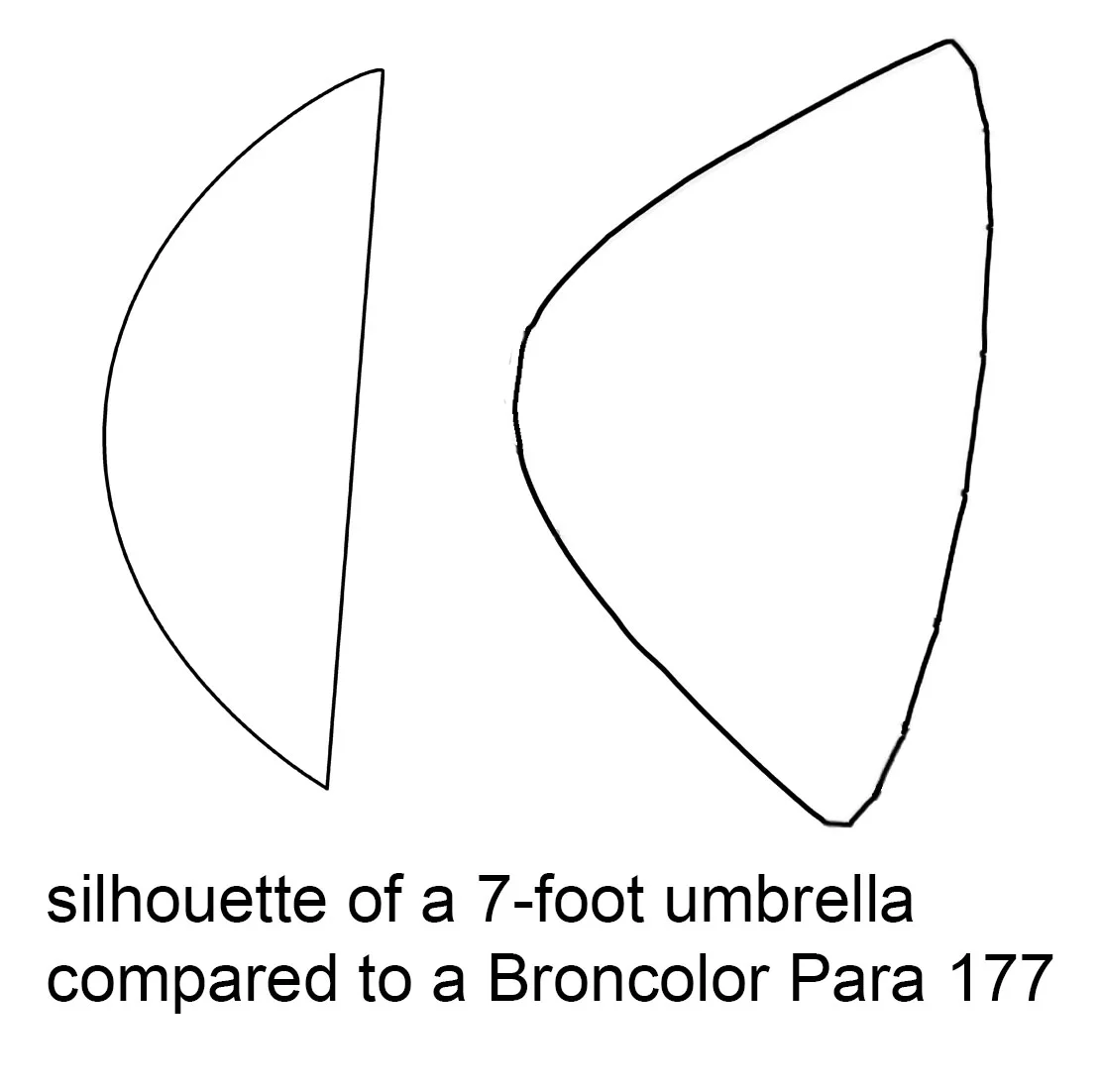

For a while I’ve been thinking about ways to make these umbrellas act a bit more like the Para. I don’t expect to match it exactly, but I was sure that I could do better than what I’ve been getting. It finally dawned on me to take the lamp head off of the umbrella shaft and mount it on a separate light stand so I could pull it even further out of the umbrella. Take a look at the light pattern in the umbrella in the third photo where I have placed the lamp 5-feet (60-inches) from the center of the umbrella instead of at the 31-inches when mounted on the umbrella shaft. This is starting to look more like what I’ve been trying to achieve. The edge lights are not quite as small as I would like, but I think that comes from the overall shape of the umbrella. The true paras are deeper and more of a cone shape than the 7-footers.

What does all that translate to on the other side of the camera? Here are three self portraits made with the lamp head in the three positions. The modifier and camera remained stationary between these photos with the umbrella about 8-feet away from the subject and white seamless paper about 2-feet behind the subject.

Flash head mounted far up the umbrella shaft

Flash head mounted far up the umbrella shaft

Flash head pulled back to the end of the umbrella shaft

Flash head pulled back to the end of the umbrella shaft

Flash head mounted outside the umbrella

Flash head mounted outside the umbrella


The first image feels a bit harsh and contrasty for my taste. The second is a little nicer with a bit more of a feeling of the light wrapping. Third image is my choice for contrast and quality. Notice the color change in the third photo. In the first two images the light is pretty well contained within the modifier and doesn’t bounce all around the room (what I call environmental bounce). In the third image the flash head is well outside the modifier, as shown on the right, bouncing light around the room which has a golden colored wood floor, which becomes a secondary light source, which warms up the image considerably.

Here are closeups of the catchlights in each of the above. Some might find the ring light look in the third image distracting. Other people might not ever notice it.

With the lamp head way out in front of the modifier you need to be careful about the light striking the front of the lens causing flare. The lens hood might not be enough. You might need to set up a flag between the light and the lens depending on how close you are trying to get the light to your subject.

You can stop reading here if you like. But if you want to geek out a bit about parabolas, I’ve added the following section.

Going more into the geek…

Let’s look at what makes a parabola. First the standard definition: a symmetrical open plane curve formed by the intersection of a cone with a plane parallel to its side.

WHAT???


Basically, it is a U-shaped curve. You can read tons more on Wikipedia. Here we are concerned less with what a parabola is or how it is formed, but more about what it does to light. Within the parabola is a focus point on the axis of symmetry and outside is a line called the directix. The parabola is the shape defined when all the points on a line are equidistant from both the focus point and the directix. Visually, it goes something like this on the right.

When talking about light, a (theoretical) point source placed at the focus point is reflected into a parallel beam, leaving the parabola in parallel rays. In actual practice let’s just say that the light is deep (falls off slower than inverse square would predict) and contained or directional. Various factors prevent the light rays from being truly parallel. There is little environmental bounce, so the light is contrasty, but it is also large, so it fills in some shadows. You will need to experiment with having the light at different distances from the subject to find the look that you like.

If the lamp is moved further out of the parabola—defocused—the light rays are scattered (diffused) and exit in a diverging pattern, but the center goes dark and you get a ring of bright spotlight-like lights around the edge of the reflector. The overall exposure will be less as more of the light is spread out and bypassing the subject. Again, experiment with different light-to-subject distances, erring towards having the light closer in the smaller the parabolic umbrella you are using.


It Is More Than Just Size

More than just the size, it is what you put into it

A big rage the past couple of years has been a proliferation of low cost 7' "parabolic" umbrellas from various manufacturers. I'm not going to get into the arguments of who created the first one, or who stole who's design. My concern is more with how they are being used.

By now we should all know that the size of the light relative to the subject determines the quality of the light. Large lights give a softer, less-shadowed look. Smaller lights give a harder, more contrasty look. So, the immediate thought about a 7' umbrella would logically be that it is a very soft light. And it is. Or at least it can be. But it also to depend on what light source you use with the big umbrella.

I see a few kits offered with the 7' umbrella and a  bracket to use your speed light/lite with it. Speed lights are normally a small and hard light source. So, if you bounce it into a gigantic umbrella it should become a big and soft light. Makes sense, no?

Maybe not!

Below is a set of images of such an umbrella with a speed light attached and bounced into the umbrella. The flash is a Canon 430EX II in manual mode. The three images across the top row were taken with this combo. In the first one, the flash was set to the 105mm zoom position. There is hardly filled any of the umbrella. Yes, the light will be larger and softer than direct flash. But probably not what you were expecting. So, for the second image the flash was zoomed out to the 24mm position. Uh-oh! That isn't all that much wider than the 105mm position when the umbrella is so close to the flash head. Additionally, we see that the flash bracket doesn't come close to pointing the flash into the center of the umbrella. What to do?

The third image was taken with the flash head's built in diffuser panel popped out and over the flash. It does a much better job of filling the umbrella, but I had to open up 3+ stops to get enough light into the umbrella. And it still doesn't quite fill the umbrella evenly, note how dark the bottom portion of the umbrella is.

I imagine that a bracket to hold 3 or 4 speed lights with the umbrella shaft centered around them would be a big help, but also a big expense. Unfortunately, I only have one speed light and a single bracket, so can't test that one out.

Just as a way of comparison, I took two more shots using a studio flash head, a Speedotron 202VF. The first of these images has the standard 7" umbrella reflector. Even with this combination, the umbrella isn't quite filled by light, but overall it is much more efficient. To get the umbrella to fill with light, for the last image I took the reflector off the strobe head. With the bare tube the umbrella is finally filled. It is not quite as bright. And you need to be a lot more careful if using the umbrella rig off to the side that direct light from the bare tube doesn't hit your subject causing very distracting shadows.


Take from this what you may. I just wanted to make sure you understand that just having a super large light modifier doesn't mean that you have a super large light source. I encourage you to do a similar test with your own lighting equipment to see what it is really doing.

Thanks!
John

PS: I also tested out a silver 7' parabolic. You can see those results in this post.

PPS: I then pulled out all the modifiers I could find around the studio and compared them all in action in a new post.
